FLEX 215 AIO

All-In-One Outdoor Cabinet ESS integrating battery system, PCS, EMS, and own-developed BMS. Flexible scalable up to MWh level for farms, factories, EV charging stations, and commercial applications requiring reliable, efficient energy supply with advanced safety protection.

Rated Power

100 kW

Energy Capacity

215 kWh

Protection Rating

IP55

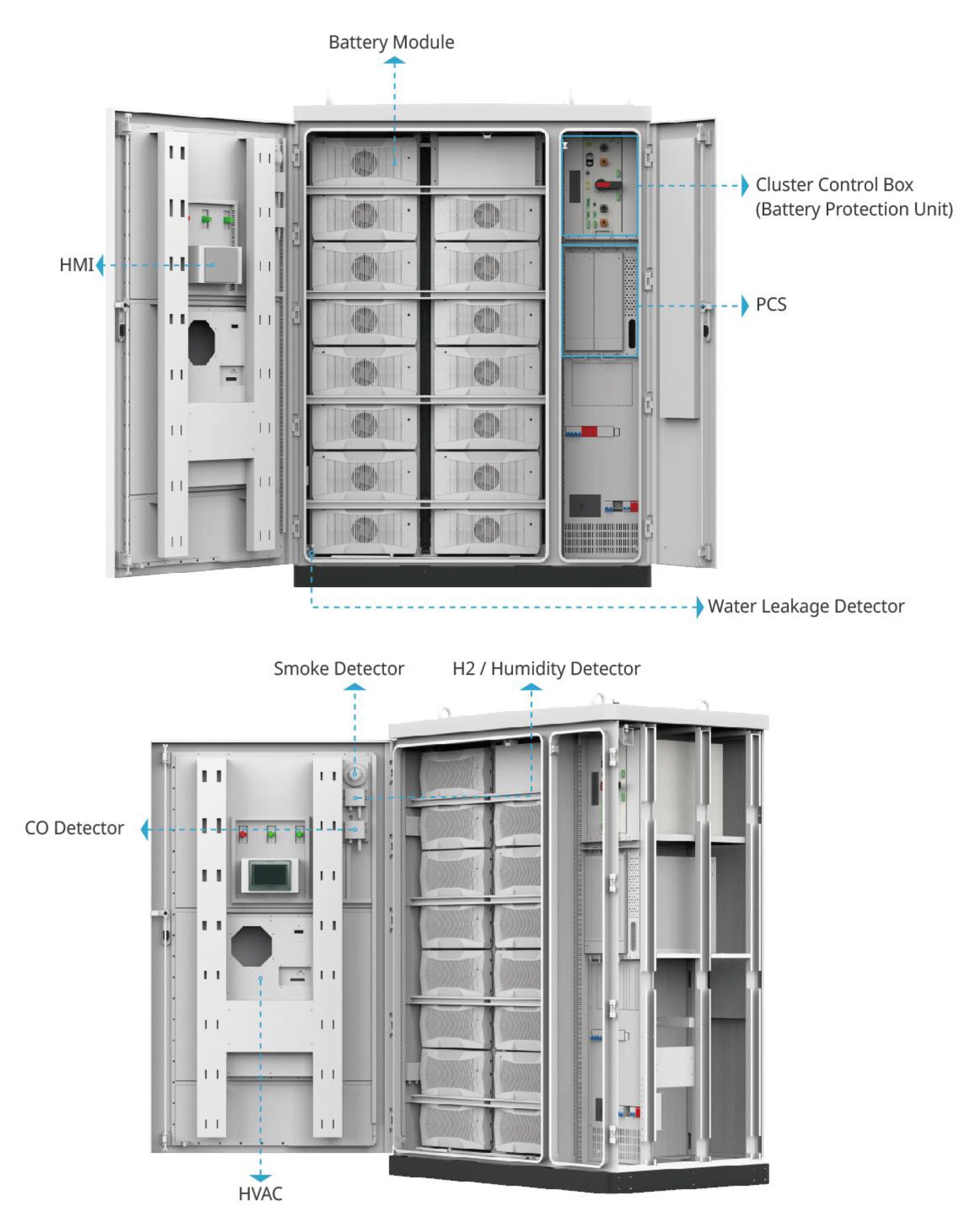

Highly Integrated Modular Design Plug and Play Cloud Monitoring

Certifications & Standards

IEC 62477 EN 61000 EN 50549-1 G99 AS/NZS 4777

Technical Specifications

Complete technical parameters and system features

Type	Parameter	Specification
AC	Rated Power	100 kW
AC	Maximum Power	110 kW
AC	Grid Type	3W+N+PE
AC	Rated Grid Voltage	400 V
AC	THDi	≤5%
AC	Grid Frequency	50 / 60 Hz
AC	EMC & Safety Standards	IEC/EN62477, EN/IEC61000, EN50549-1, G99, AS/NZS4777, VDE 4105
AC	Grid Connection Standards	CEI-016, CEI-021, NRS097, C10/11
DC	Rated Voltage	768 V
DC	Voltage Range	648 V ~ 864 V
DC	Rated Capacity	280 Ah
DC	Rated Energy	215 kWh
DC	Charge/Discharge Rate	0.5P
Other	Degree of Protection	IP55
Other	Operation Temperature	-20~45°C
Other	Storage Temperature	-30~55°C
Other	Altitude	≤ 2000 m
Other	Relative Humidity	< 95% (No condensing)
Other	Cooling Method	Air Cooling
Other	Fire Suppression System	Aerosol
Other	Communication	CAN / Ethernet
Other	Dimensions (W × D × H)	1600 × 1000 × 2150 mm
Other	Weight	2.2 t

Key Features

Outstanding advantages that make this system stand out

Tier-1 LFP Cells with In-House BMS

Features CATL LFP battery cells with top-level safety and 215 kWh energy capacity. Equipped with own-developed BMS technology that optimizes the performance and lifespan of the ESS. The highly integrated design combines battery and PCS in an all-in-one system, while the modular design allows flexible scalability up to 10 batteries for MWh-level applications.

Space-Saving Plug-and-Play Installation

Requires only 1.4㎡ minimum space with compact dimensions of 1600×1000×2150mm. Small volume integrated modules in whole-package transportation enable simple installation & relocation. The pre-engineered and pre-tested system allows plug-and-play deployment on site, significantly reducing installation time and labor costs for commercial and industrial applications.

Cloud Monitoring & Harsh Environment Protection

Features real-time cloud monitoring and remote upgrade capabilities for optimal system management. The IP55 and C4 anti-corrosion cabinet design is capable for extreme environments such as islands or rainforests. Operating temperature range from -20°C to 45°C with air cooling system and aerosol fire suppression ensures safe, reliable operation in demanding conditions.
