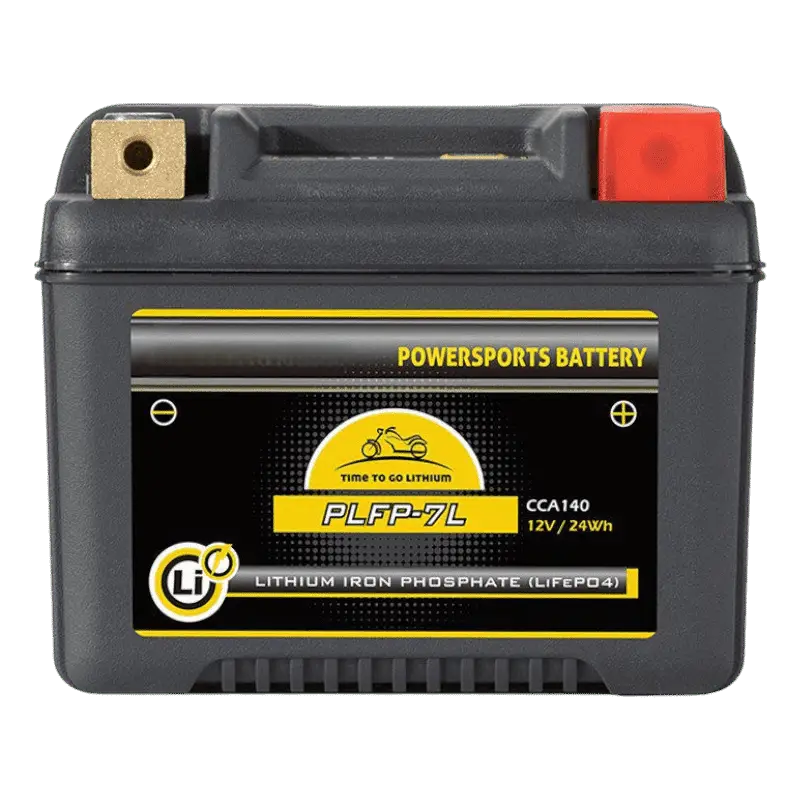

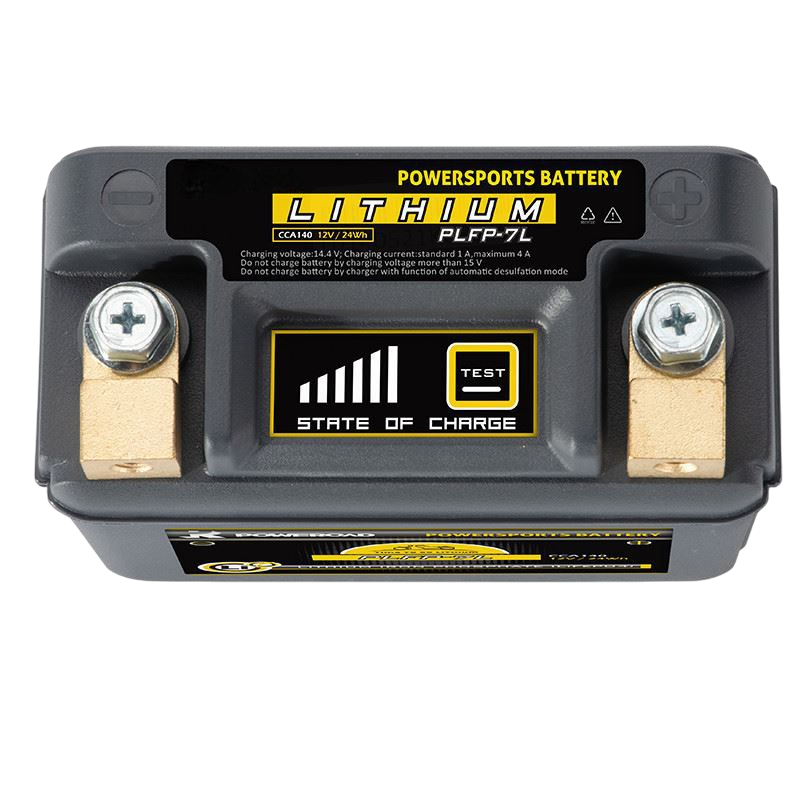

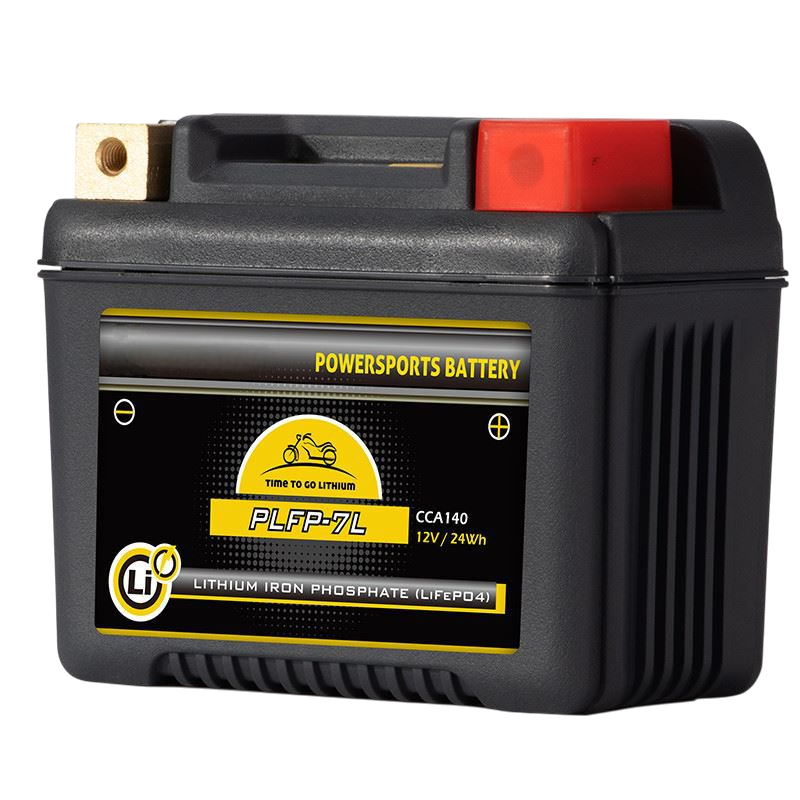

PLFP-7L Lithium-ion Phosphate Motorcycle Starter Battery
High-performance LiFePO4 motorcycle starter battery delivering 140A cranking power with heat-resistant enclosure. Features ultra-lightweight design (60% lighter), rapid charging capability, and over 4,500 cycle charges. The ultimate lead-acid replacement offering 2x more energy, 10x more starts, and 6x longer service life for your power sports vehicles.
CCA
140A
Capacity
2 Ah
Heat Resistant
230℃
Certifications & Standards
MSDS
CE
UN 38.3
Technical Specifications
Complete technical parameters and mechanical features
| Parameter | Specification |
|---|---|
| Model | PLFP-7L |
| Dimensions (L × W × H) | 107 × 56 × 85 mm |
| Weight | 0.55 kg / 1.21 lbs (60% lighter than lead-acid) |
| Terminal Type | M5 |
| Case Material | 230℃ Heat Resistance (UL94-V0 Level) |
| Enclosure Protection | IP54 |
| Cell Type | Pouch Cell |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Polarity | – + |
| Nominal Voltage | 12.8 V |
| Ampere Hour (Ah) | 2 Ah |
| Energy | 25.6 Wh |
| Self Discharge | 3% monthly (≤2% maintenance-free) |
| Discharge Temperature | -20°C ~ +55°C |
| Charge Temperature | 0°C ~ +45°C |
| Charge Retention | >97% per Month |
| Cranking Current | 140A (70C) <15S |
| Cold Cranking Ampere (CCA) | 60A (30C) <15S at -18℃ |
| Peak Discharge Current | 140A @ 5s / 200A @ 1s |
| Discharge Cut-off Voltage | 7.2 V |
| Charge Current | Standard: 2A / Maximum: 4A |
| Cycle Life | 2000+ cycles (6x higher than lead-acid) |
| Certifications | MSDS, CE, UN 38.3 |
| Shipping Classification | UN 3480 |
| Replacements | YTZ5S / YTZ7S / YTX4L-BS / YTX5L-BS / YTX7L-BS / YB4L-A / YB4L-B / YB5L-B / YB6.5L-B / YB7L-B / 12N4-3B / 12N5-3B / 12N5.5-3B / 12N7-3B / 12N7A-3A / 12N7CZ-3D / 12N7D-3B |
Key Features
Outstanding advantages that make this battery stand out
Fabulous Performance
Delivers over 70C of cranking power with 140A @ 5s / 200A @ 1s peak discharge current. Provides over 4,000 starts and more than 4,500 cycle charges. Features 2x more energy, 10x more starts, and 6x longer service life compared to traditional lead-acid batteries, offering you the best replacement solution for power sports vehicles.
Drop-in Ready & Rapid Charging
Universal standard sizes options with M5 terminal type perfectly fit all battery houses. Simply remove the heavy-duty lead-acid and install the lithium - no struggle at all. Advanced quick charge technology with 2A standard / 4A maximum charge current allows unbound lithium power with rapid charging within minutes. Built-in SOC display eliminates low power anxiety - one click to see the state of charge.
Advanced Safety & Thermal Management
Built with robust UL94-V0 Level casing offering up to 230℃ fire resistance. Features all-brass terminal connections for maximum reliability. IP54 enclosure protection ensures dust and water resistance. Thermal silicone sealant provides stable operation from internal components. Advanced BMS protection with low-voltage cut-off, over-discharge, and over-charge protections. Eco-friendly design with no toxic materials, no acid, and no heavy metals - completely maintenance-free operation.
